- Horsepower & torque gains maximized
- Inlcudes Apple & Android mobile flashing app
- Stock boost control optimized for all conditions
- 91, 93, & 104 pump octanes available (95, 98, & 108 RON)
- Optional TrueFlex adapts from 91 pump all the way to full E85
- Includes optional High Torque & Low Torque files
- Rev limiter increased to 7000 RPM (with DSG flash)
- Brake boosting enabled for rolling launches on all stages
- Launch control torque increased for faster launches
- Road speed limiters removed
- Exhaust Crackle feature available for Stage 2
- Engineered for all climates and elevations

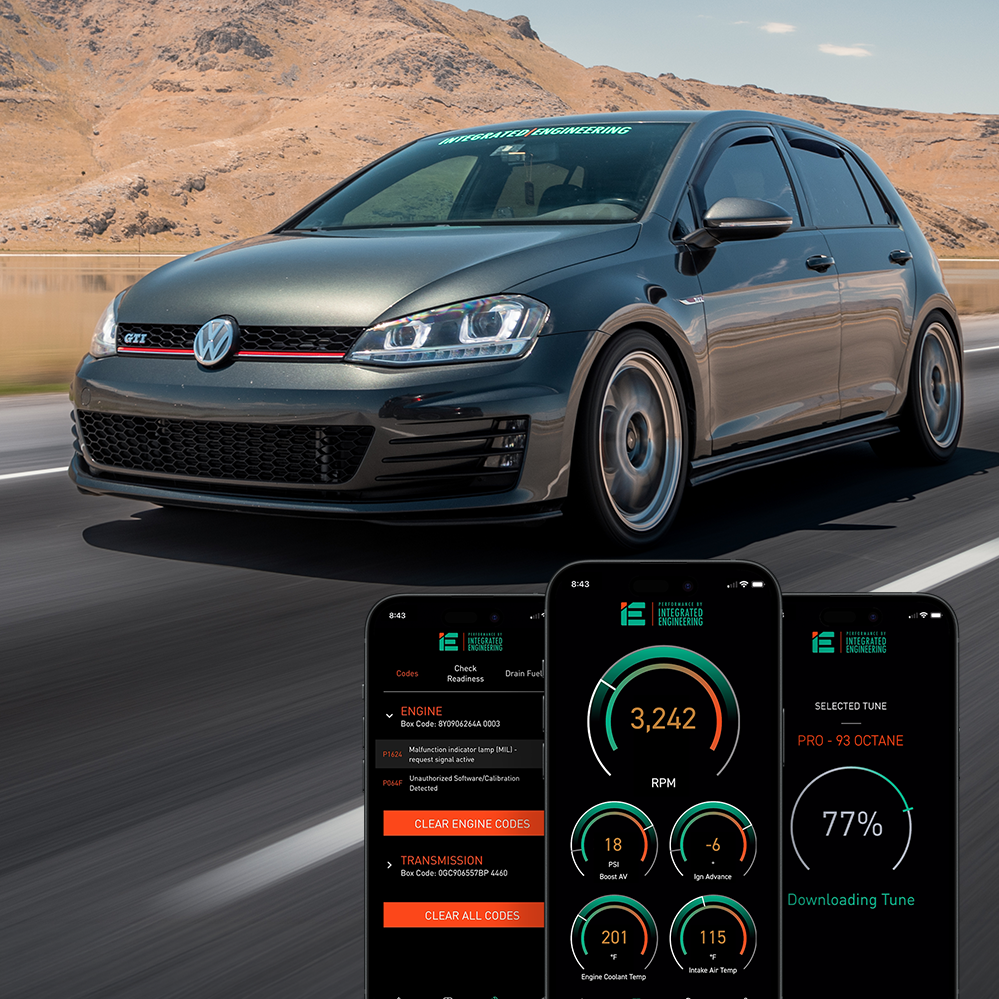

- Direct port OBDII at-home flashing
- Easy octane switching takes only minutes
- Upgrade stages to match hardware upgrades

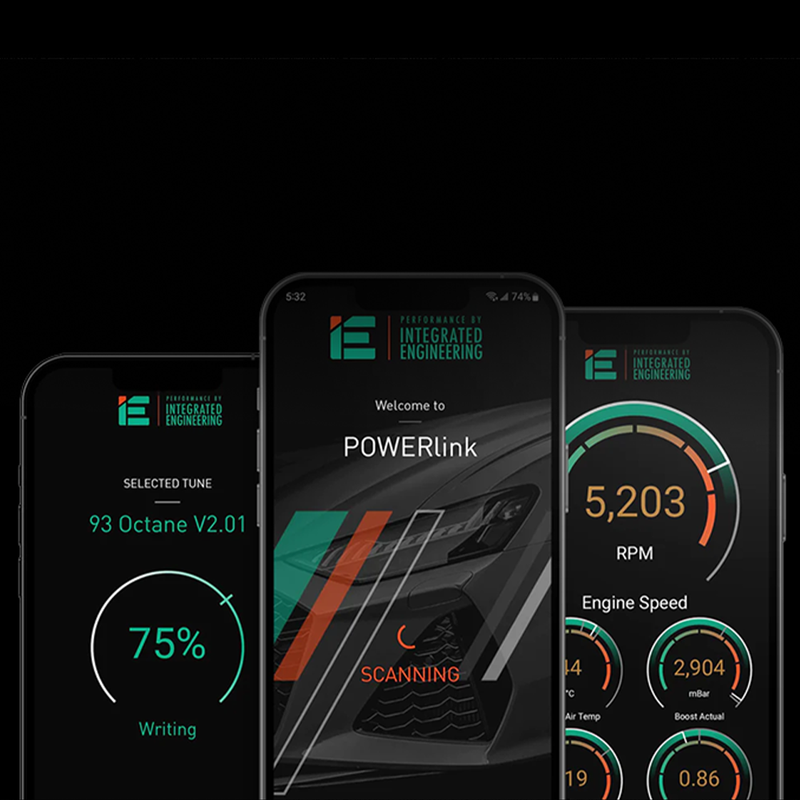

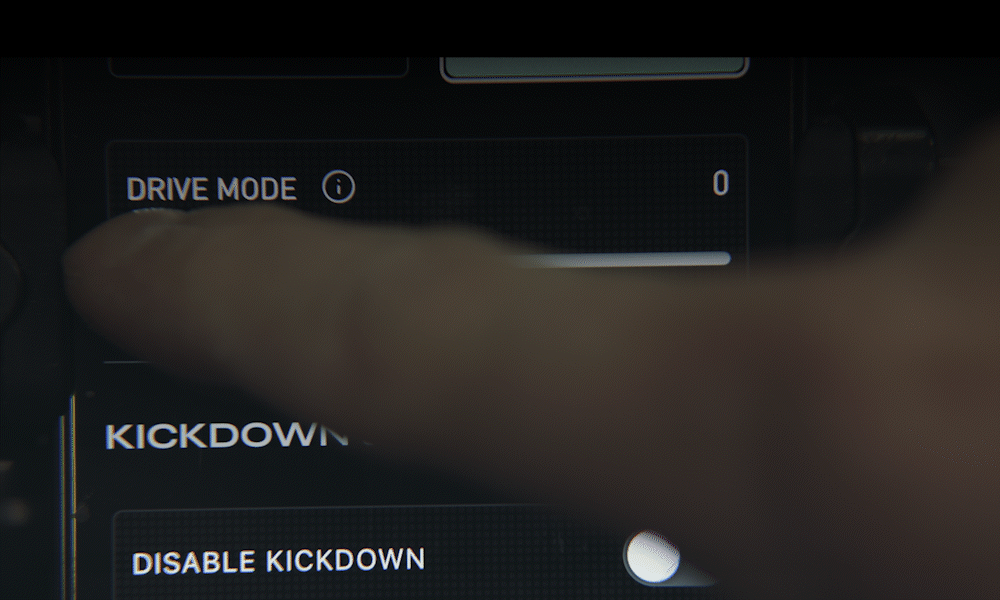

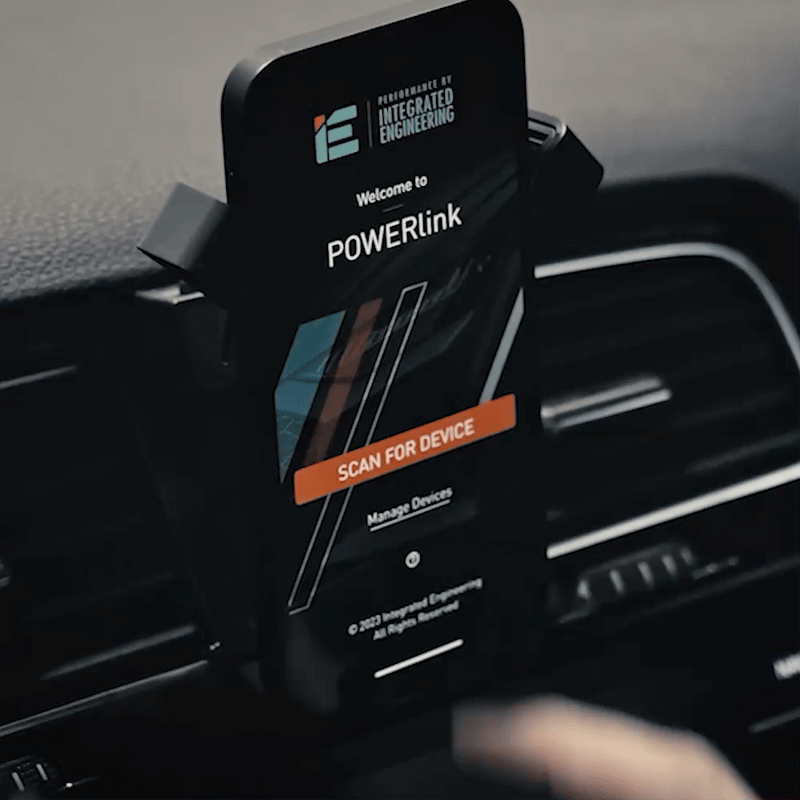

- Simple on/off feature toggling with POWERlink

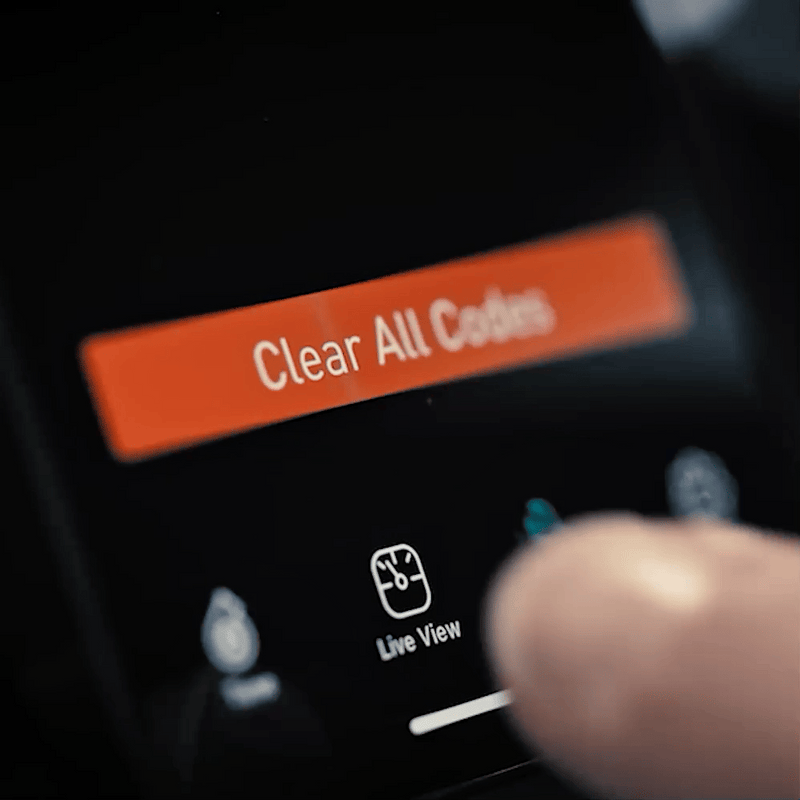

- Read and clear diagnostic/problem codes
- Easy to use Data-logger
IE Performance Tune - MQB VW Mk7 GTI / GLI | IESOVN11
LEADING FEATURES
MK7 IS20 STAGE 1
IE Stage 1 ECU calibration dramatically increases performance leaving no hidden power on the table, and safely maxes out the factory IHI IS20 turbocharger's horsepower & torque capability. Engineered to operate on entirely stock hardware and compatible with basic bolt-ons (intake, turbo inlet, intercooler).
See the performance tab for power and dyno results
MK7 IS20 STAGE 2
IE Stage 2 software is for full bolt-on stock turbo builds running an aftermarket racing downpipe. IE calibrators use advanced tuning strategies to extract additional power and account for the increased flow from an upgraded downpipe and performance hardware. The required hardware upgrades for stage 2 will increase airflow, exhaust flow, lower intake air temps, provide faster IAT recovery, and produce an overall more efficient and faster vehicle on the stock IHI IS20 turbocharger. See below for a complete list of Stage 2 requirements.
Upgrading from Stage 1 to Stage 2 or beyond is easy! With IE, you only pay the difference in tune cost with no extra fees. When you install the required matching hardware, follow the instructions on your IE POWERlink app to purchase the tune upgrade, and you will be blowing away the competition in minutes!
HIGH/LOW TORQUE FILES
IE High Torque ECU calibrations maximize power gains throughout the entire powerband which quickly exceeds the torque limitations of the factory DSG calibration (auto trans) or the stock clutch (manual trans) that leads to clutch slipping. Stage 1 and Stage 2 files include optional Low Torque files for vehicles with stock DSG tune or stock clutch. Both high and low torque files are included and can be switched between as often as you like.
High Torque files require the additional purchase of a DSG transmission tune or clutch upgrade.
FEATURES & OPTIONS
TRUEFLEX ETHANOL
E85 fuel unlocks the most performance potential from our ECU tunes for your GTI or A3 Gen 3 engine. Ethanol contains tons of oxygen, burns cooler, and has a high resistance to knock. This provides more horsepower and torque than running conventional gasoline and is more readily available (in most states) and less expensive than race gas. IE TrueFlex calibrations take this a step further and allow for 91 octane all the way up to full E85 or anything in between on one tune without the need to reflash! TrueFlex is an included option with all stages. Currently available for 2015-2018 model years, 2019+ support is coming soon.
Click the TrueFlex tab above to learn more about this exciting feature
INCREASED RPM
To take advantage of the new larger power band, factory rev limits have been raised to 7000RPM in all stages. On DSG equipped cars, the transmission will shift slightly before the new engine RPM (6900RPM).
DSG Tune is required to unlock higher RPM.

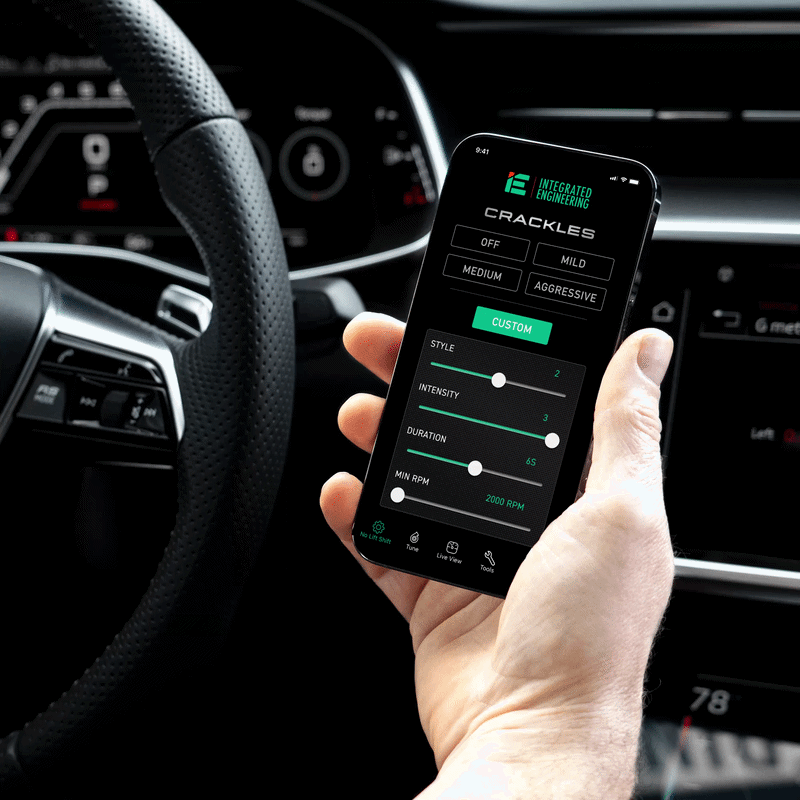

EXHAUST CRACKLE
Enabling the Exhaust Crackle feature will add a motorsport-inspired crackle sound to your exhaust note when you free-rev the engine or decelerate. This feature can be flashed on or off at will with your IE POWERlink.
For the most aggressive pops and bangs an aftermarket catback system is recommended.
BRAKE BOOST
Brake Boosting provides a competitive edge in a roll racing scenario. While maintaining a constant speed and throttle position, apply brake pressure with the left foot to build boost at speed resulting in a rolling launch when brake pressure is released.
RELIABILITY TESTING
IE's fully proven software brings track-ready ECU programming to your EA888 Gen3 IS20 turbocharged 2.0T engine while retaining factory comfort and reliability. IE's own tuning technology suite is used to completely reverse-engineer the factory ECU mapping, allowing our software engineers access to realign all safety protocols and sensors for the new performance calibration. Every tune parameter undergoes months of testing on our in-house dyno systems that utilize the world's only Sea Level Generator developed specifically to verify tune operations in any condition. Confidently drive from LA to Pikes Peak with power that will keep you smiling every mile!
HARDWARE GUIDE
PART UPGRADE | STAGE 1 | STAGE 2 |
DSG TUNE OR CLUTCH UPGRADE |
REQUIRED FOR HIGH TORQUE FILES |
REQUIRED |
AIR INTAKE |
OPTIONAL |
RECOMMENDED |
INTERCOOLER |
OPTIONAL |
HIGHLY RECOMMENDED |
TURBO INLET PIPE |
OPTIONAL |
HIGHLY RECOMMENDED |
CATBACK EXHAUST |
OPTIONAL |
OPTIONAL |
HPFP UPGRADE |
REQUIRED FOR TRUEFLEX ONLY |
REQUIRED FOR TRUEFLEX ONLY |
TRUEFLEX SENSOR HARNESS KIT |
REQUIRED FOR TRUEFLEX ONLY |
REQUIRED FOR TRUEFLEX ONLY |
DOWNPIPE |
Not Compatible With Stage 1 |
REQUIRED |
TURBO UPGRADE |
Not Compatible With Stage 1 |
Not Compatible With Stage 2 |
DOWNPIPE NOTICE: BY PURCHASING A MOTORSPORT/RACING PRODUCT ("PRODUCT"), YOU REPRESENT THAT YOU UNDERSTAND AND AGREE THAT: THE PRODUCT IS NOT DESIGNED TO MEET ANY APPLICABLE EMISSIONS STANDARDS, WHETHER IN THE USA OR OTHERWISE, THE PRODUCT IS NOT C.A.R.B. COMPLIANT, AND THAT THE PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA, USA NOR ANY OTHER JURISDICTION WHERE THE SALE OR USE IS PROHIBITED BY LAW. INTEGRATED ENGINEERING, LLC MAKES NO REPRESENTATIONS, WARRANTIES, OR CLAIMS THAT THIS PRODUCT COMPLIES WITH ANY APPLICABLE EMISSIONS LAWS AND EXPRESSLY DISCLAIMS ANY AND ALL SUCH REPRESENTATIONS, WARRANTIES, AND CLAIMS, WHETHER EXPRESS OR IMPLIED. BY PURCHASING THIS PRODUCT, YOU REPRESENT, WARRANT, AND AGREE THAT IT IS YOUR RESPONSIBILITY TO INFORM YOURSELF OF ANY LAWS OR REGULATIONS THAT MAY APPLY TO YOUR PURCHASE AND/OR USE OF THE PRODUCT.
Stage 2+ IS38
LEADING FEATURES
- Up to 420HP & 474ft-lbs!
- Tune for using stock Golf R / S3 turbo
- Complete IS38 turbo tuning suite
- 91, 93, & 104 pump gas fuel maps
- TrueFlex adapts from 91 up to E85 ethanol
- Power increases throughout the powerband
- Rev limiter increased to 7000 RPM (with DSG flash)
- Optimized safely for factory engine internals
- Launch control torque increased for faster launches
- Brake boosting enabled for rolling launches
- Road speed limiters removed
- Optional exhaust Crackle feature
- Engineered for all climates and elevations
STAGE 2+ IS38 TURBO
IE Stage 2+ IS38 adds the next step of power over Stage 2 by adding a larger IHI IS38 turbocharger delivering up to 420HP & 474TQ! This ECU tune when combined with your existing Stage 2 hardware and IS38 adds additional power and boost over Stage 2 using the factory larger turbo found stock on MK7 Golf R and 8V S3 engines.
See the performance tab for full performance results and dyno charts
STAGE 2+ IS38 TRUEFLEX
IE's Stage 2+ IS38 TrueFlex requires all Stage 2 hardware, IS38 turbo upgrade, and utilizes our flex-fuel sensor and harness kit to deliver the jost power from your turbo upgrade. TrueFlex will automatically adjust between 91 octane up to E85 ethanol.
See the TrueFlex tab to learn more about this performance flex-fuel option
IS38 STOCK DOWNPIPE FILE
Want more power on the street without increasing your emissions output? IE's IS38 Stock Downpipe file utilizes our TrueFlex harness and ECU calibration to offer beyond stock turbo stage 2 power levels. Enjoy a massive boost in horsepower and torque without changing the factory catalytic converter.
See the performance tab for full performance results and dyno charts
TRUEFLEX IS CURRENTLY AVAILABLE FOR 2015-2018 MODEL YEARS WITH NORTH AMERICAN ECUS ONLY. ADDITIONAL SUPPORT COMING SOON!
STAGE 2 + IS38 HARDWARE GUIDE
PART UPGRADE | REQUIREMENT |
TURBO UPGRADE |
REQUIRED |
DOWNPIPE |
REQUIRED |
DSG TUNE |
REQUIRED |
INTERCOOLER |
REQUIRED |
AIR INTAKE |
RECOMMENDED |
TURBO INLET PIPE |
RECOMMENDED |
HPFP UPGRADE |
REQUIRED FOR TRUEFLEX ONLY |
IE TRUEFLEX FLEX FUEL HARNESS |
REQUIRED FOR TRUEFLEX ONLY |
CATBACK EXHAUST |
OPTIONAL |
Stage 3 GT2260S
LEADING FEATURES
- Up to 489HP & 483TQ
- Complete Garrett GT2260S turbo tuning suite
- 91, 93, & 104 pump gas fuel maps
- TrueFlex adapts from 91 up to E30 ethanol blend
- Power increases throughout the powerband
- Continues to produce power in the higher RPM range
- Increased power with minimal added boost lag
- Rev limiter increased to 7000 RPM (with DSG flash)
- Optimized safely for factory engine internals
- Launch control torque increased for faster launches
- Brake boosting enabled for rolling launches
- Road speed limiters removed
- Optional exhaust Crackle feature
- Engineered for all climates and elevations
- Tune & turbo provides a bolt-in and go power
STAGE 3 GT2260S IS CURRENTLY AVAILABLE FOR 2015-2018 MODEL YEARS WITH NORTH AMERICAN ECUS ONLY
STAGE 3 GT2260S
IE Stage 3 GT2260S offers an easy upgrade to the bolt-on turbo with power levels delivering up to 463HP & 454TQ on pump gas! This advanced ECU calibration when combined with the Garrett turbocharger, HPFP upgrade, and stage 2 hardware (intake, intercooler, & downpipe) delivers deceivingly fast performance and exhilarating fun.
See the performance tab for full performance results and dyno charts
STAGE 3 GT2260S TRUEFLEX
IE's Stage 3 GT2260S TrueFlex for your MK7 or 8V 2.0T utilizes our flex-fuel sensor and harness kit to deliver race gas power on a cost-effective ethanol blend producing a heart-pounding 489HP & 483TQ! E30 is the highest blend available within the fuel system limitations providing the maximum performance numbers without pulling power for higher E%. TrueFlex will automatically adjust between 91 octane up to E30 ethanol blend. Ethanol content must not exceed the maximum E30 blend; an ethanol content sensor kit and gauge is highly recommended.
See the TrueFlex tab to learn more about this performance flex-fuel option
GARRETT POWERMAX TURBO
When selecting a turbocharger for our MQB Stage 3 ECU tuning, IE engineers and calibrators valued a large powerband of increased power and reliability without adding turbo lag. After extensive research and testing, the easy bolt-in design of the German-engineered Garrett GT2260S proves itself as the optimal balance of increased top-end power, smooth power delivery, and responsive boost with unnoticeable lag over stock. Backed by Garretts reputaiton of reliability with over 65 years in leading the proffessional motorsport, aftermarket, and factory turbo applications. When combined with IE's calibration strategies, the result is modern street manners with truly addicting race-car performance.
TURBO SOLD SEPARATELY
GT2260S TUNE DEVELOPMENT
ADVANCED ENGINE MANAGEMENT
Installing your Garrett PowerMax GT2260S, IE Stage 3 ECU tune, and required hardware will deliver the maximum amount of power supported by the fuel system while staying well within the safe power limits of the stock engine internals. IE calibration and software engineers employed highly advanced tuning practices and equipment to develop a complete ground-up engine management system for the unique characteristics of the new boost profile and powerband. All performance calibrations and safety coding has been retained and rewritten for the substantial power gains from the larger Garrett turbocharger.
REAL-WORLD VERIFICATION
IE calibrators performed extensive mapping rework for the larger turbo. The countless testing hours of every tune iteration have gone through thousands of dyno tests, street-tested, pushed on the track and expanded to a large beta testing community. This testing process produces a massive library of data from various vehicles, fuels, climates, weather conditions, and altitudes. That data is then used to make numerous changes to the files to maximize performance, driving characteristics, and reliability. In an early beta tune track test, the results produced high 10-second quarter mile runs!
STAGE 3 GT2260S HARDWARE GUIDE
PART UPGRADE | COMPATIBILITY |
GARRETT POWERMAX GT2260S TURBO |
REQUIRED |
DSG TUNE OR CLUTCH UPGRADE |
REQUIRED |
AIR INTAKE |
REQUIRED |
INTERCOOLER |
REQUIRED |
HPFP UPGRADE |
REQUIRED |
DOWNPIPE |
REQUIRED |
TRUEFLEX SENSOR & HARNESS KIT |
REQUIRED FOR TRUEFLEX ONLY |
CATBACK EXHAUST |
OPTIONAL |
TURBO INLET PIPE |
Not compatible, GT2260S includes proprietary turbo inlet |
POWER GAINS
North American Region (NAR) = AKI / Rest Of World (ROW) = RON
2015-2018 MODEL YEARS
STAGE / FUEL | HORSEPOWER | TORQUE |
Stock VW/Audi advertised numbers |
210 HP |
258 FT-LBS |
Stock IE dyno numbers |
237 HP |
298 FT-LBS |
Stage 1 91 AKI / 95 RON |
304 HP |
385 FT-LBS |
Stage 1 93 AKI / 98 RON |
310 HP |
389 FT-LBS |
Stage 1 TrueFlex Ethanol |
361 HP |
420 FT-LBS |
Stage 2 91 AKI / 95 RON |
322 HP |
393 FT-LBS |
Stage 2 93 AKI / 98 RON |
327 HP |
399 FT-LBS |
Stage 2 TrueFlex Ethanol |
394 HP |
448 FT-LBS |
IS38 Turbo 91 AKI / 95 RON |
390 HP |
438 FT-LBS |
IS38 Turbo 93 AKI / 98 RON |
396 HP |
443 FT-LBS |
IS38 Turbo 104 AKI / 108 RON |
414 HP |
457 FT-LBS |
IS38 Turbo Stock Downpipe TrueFlex Ethanol |
377 HP |
398 FT-LBS |
IS38 Turbo TrueFlex Ethanol |
409 HP |
459 FT-LBS |
Stage 3 GT2260S 91 AKI / 95 RON |
423 HP |
421 FT-LBS |
Stage 3 GT2260S 93 AKI / 98 RON |
435 HP |
432 FT-LBS |
Stage 3 GT2260S 104 AKI / 108 RON |
437 HP |
429 FT-LBS |
Stage 3 GT2260S TrueFlex E30 |
462 HP |
456 FT-LBS |
2019-2021 MODEL YEARS
STAGE / FUEL | HORSEPOWER | TORQUE |
Stage 1 91 AKI / 95 RON |
304 HP |
385 FT-LBS |
Stage 1 93 AKI / 98 RON |
310 HP |
389 FT-LBS |
Stage 1 TrueFlex Ethanol |
363 HP |
409 FT-LBS |
Stage 2 91 AKI / 95 RON |
322 HP |
393 FT-LBS |
Stage 2 93 AKI / 98 RON |
327 HP |
399 FT-LBS |
Stage 2 TrueFlex Ethanol |
385 HP |
415 FT-LBS |
IS38 Turbo 91 AKI / 95 RON |
401 HP |
457 FT-LBS |
IS38 Turbo 93 AKI / 98 RON |
409 HP |
462 FT-LBS |
IS38 Turbo 104 AKI / 108 RON |
420 HP |
474 FT-LBS |
FULL E85 • PUMP FUEL • INSTANT ADAPTABILITY • ONE TUNE
INSTANT ADAPTABILITY

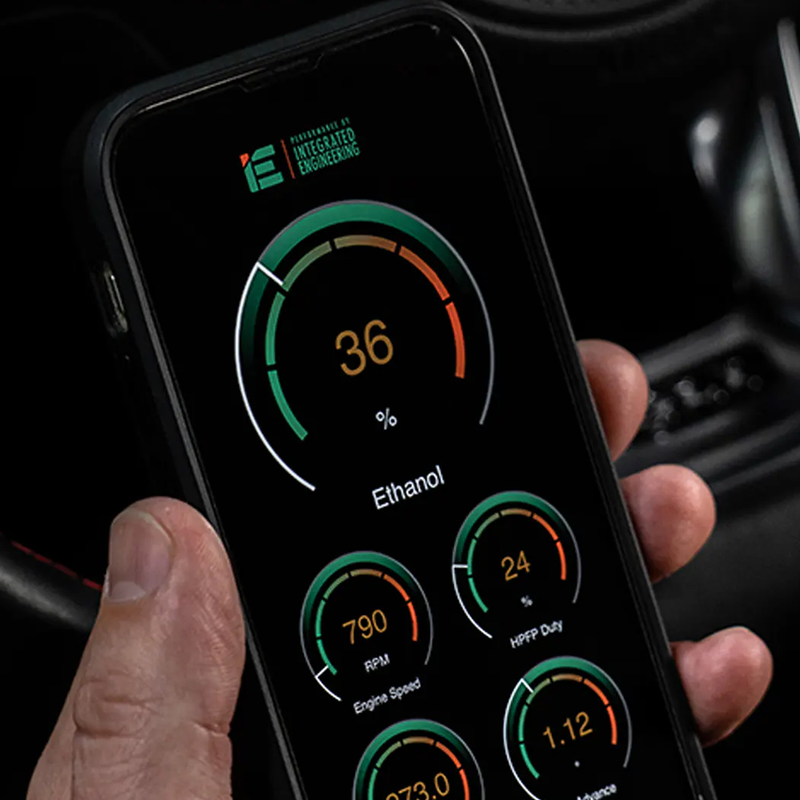

IE's TrueFlex unlocks the flexibility to run full E85 down to 91 octane gas and any mix in between on a single tune without the need to reflash the ECU. IE's software engineers and calibrators have developed our own advanced TrueFlex calibration, allowing the ECU to safely adjust for ethanol content down to the exact percentage in real-time. This powerful programming brings the ease and confidence to fill up at the pump and make the most power available from your fuel choice without having to drain, verify blends, or reflash the ECU.
E85 TrueFlex is an included option for all model years for stage 1 & 2. IS38 and stage 3 tunes are currently available for 2015-2018 model years only.
MAXIMUM PERFORMANCE
Factory equipped flex-fuel calibrations are designed to adjust for the cleanest emissions for different ethanol blends to get the highest MPG. This typically results in maximum timing for the lowest octane (91) across the entire range up to E85, leaving loads of untapped power on the table. IE TrueFlex is a complete performance adaptation that makes instant and continuous adjustments to performance maps such as boost and timing and releases the most available power for the fuel mix as it enters the cylinder.
RELIABLE ETHANOL
Not only does IE TrueFlex allow for amazing power potential, but it also offers the most safety from ethanol blends. The ability to truly meter and adjust for ethanol content allows the tune to instantly alter the ECU maps to keep the engine in the optimal range and protect from dangerous lean conditions. This offers amazing protection from pumps that may have lower than advertised ethanol content or if no ethanol is available. Fill up with the best quality fuel available to you, and let TrueFlex do the rest!
TRUEFLEX REQUIREMENTS
TRUEFLEX HARNESS
The EA888 Gen 3 2.0T engine is not equipped with any type of Flex Fuel systems from the factory and lacks the ability to sense fuel content. In order for IE's TrueFlex ECU tune to work, an IE TrueFlex Sensor Harness Kit is required. This easy to install harness kit installs a sensor capable of delivering instant fuel content data to the ECU calibration.
HPFP UPGRADE
Ethanol offers higher power output but also requires more fuel delivery than regular pump gas. The stock High Pressure Fuel Pump (HPFP) can not deliver enough fuel to support ethanol and must be upgraded. IE HPFP Upgrade Internal Kit ensures there will be enough fuel supply for ethanol content to run reliably at all elevations and climate conditions safely.
TRUEFLEX FITMENT GUIDE
MODEL | SUPPORTED STAGES | SUPPORTED YEARS |
MK7 GTI |
STAGE 1, STAGE 2, IS38, & STAGE 3 |
2015-2018 |
MK7.5 GTI |
STAGE 1 & STAGE 2 |
2019-2021 |
MK7.5 GLI |
STAGE 1 & STAGE 2 |
2019-2022 |
8V A3 (AWD 2.0T) |
STAGE 1, STAGE 2, IS38, & STAGE 3 |
2015-2018 |
8V.5 A3 (AWD 2.0T) |
STAGE 1 & STAGE 2 |
2019-2021 |
